IROAD X1 Dash Cam 32G

IROAD X1
[1CH] HIGH DEFINITION VIDEO QUALITY
BEYOND FULL HD 60FPS

1CH FHD
SONY STARVIS IMAGE SENSOR
60FPS FHD 1080P
INTELLIGENT NIGHT VISION
ROAD SAFETY WARNING SYSTEM
WIFI CONNECTION & IROAD APP
150º WIDE ANGLE
1.4W MINIMUM POWER
FORMAT FREE AUTO RECOVERY
BATTERY DISCHARGE PREVENTION
DEDICATED PC VIEWER
EXTERNAL GPS ANTENNA

SONY STARVIS Image sensor
IROAD X1 is equipped with a Sony Starvis image sensor to record the brightest and the cleanest images even in low light environments. It provides a much brighter and clearer image than seeing with bare eyes.

X-VISION
Intelligent NIGHT VISION for IROAD
In parking mode, the surrounding brightness is automatically diagnosed within 5 seconds and the recording brightness will be set to 3 times higher when the surrounding illumination is low. It can record bright and clear images not only in parking mode but also in driving mode.

ADAS
Advance Driver Assistance Systems
The IROAD X9 is equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW).
It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
LDWS
Lane Departure Warning System
LDWS operates in a way that the front camera recognises the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.
FCWS
Forward Collision Warning System
The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.
FVDW
Front Vehicle Departure Warning
Front Vehicle Departure Warning is for generating a warning once the vehicle in the front stops and waits for a signal or starts. Intelligent smart system for driver’s convenience!

EASY TO CONNECT VIA WIFI
Check playback videos anytime & anywhere All through one app. Get it Free now

DESIGNED FOR SMARTER IROAD DASH CAM USE
Easily confirm recordings and back up what you want to keep on your Smartphone.
All you need is free IROAD mobile application, live view, backup, and upload to SNS through the application.

SIMPLY CONNECT VIA WI-FI SITTING IN YOUR CAR
Easily manage all available settings, such as ADAS, resolution, sensor, time, sound, cut-off voltage and more functions.

FORMAT FREE
The Most Stable System
The file system improved in stability by utilising the JDR system. Recordings are automatically saved in the main memory unit and are safer than previously-used formats. JDR format does not require formatting regularly, and automatic rebooting function guarantees the safety of the device and data.
DATA RECOVERY
Auto Recovery System
Saved images can be memorised and restored with the auto recovery system. In addition, by allocating the data to a certain size, the user can arbitrarily adjust the data to be recorded and allocate space according to the size.
LBP
Battery Discharge Prevention Function
For the purpose of battery protection, it automatically detects and cuts off voltage when the voltage drops below a certain point. Once initiated, recording is stopped and power is Turned Off. The motion detection function is effective for saving battery.

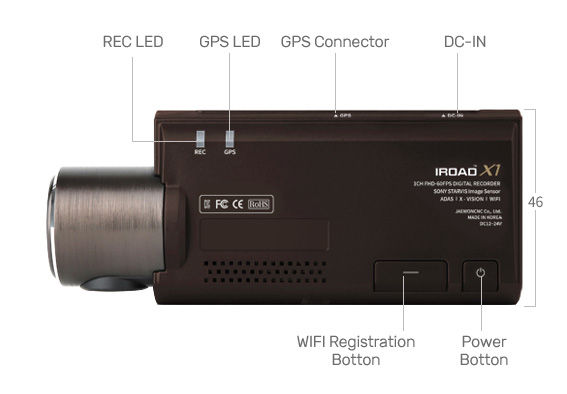

GENERAL SPECIFICATIONS:
IROAD X1
DIMENSION 110 x 48 x 20 mm
WEIGHT 83g

DETAILED SPECIFICATIONS
IROAD X1
CAMERA
Front: SONY STARVIS 2.13M
RESOLUTION
Full HD (1920 x 1080P)
FRAME
Front & Rear: 60fps
DEGREES
Front: 150º
CPU
ARM Cortex-A7 MP Core Processor V3
X-VISION
In parking mode, set automatically brightness 3 times more
WI-FI
Smartphone playback/settings, Firmware automatic upgrade
ADAS
LDWS(Lane departure warning system) FCWS(Forward collision warning system) FVDW(Front Vehicle Departure Warning)
LBP
Cut-off and booting voltage settings(Constant power)
G SENSOR
Axis Accelerometer G-Sensor (3D, ±3G)
GPS
External GPS Antenna ((In conjunction with Google Maps to check the location and speed)
CAPACITY
Micro SD 4GB ~ 256GB (recommended type MLC Class10)
RECORDING MODES
Normal(driving)mode, Event(impact)mode, Parking(Motion Detection) mode, Voice recording
AUDIO
Speaker (Effect sound for informing operational status and 34 kinds of voice guidance supported), Microphone embedded.
VIDEO
H.264 / ADPCM
TEMPERATURE
-30 ~ 80 º C (Storage temperature : -30 ~ 90 º C)
HUMIDITY
10 ~ 95%
ETC
Security LED / Operation Status LED/ GPS Receiver LED
PC VIEWER
Windows Xp, VISTA, Win7, Win8 (32Bit ~ 64Bit support)
APPLICATION
IROAD App (Android 2.3, iOS 5.0 or higher version)
